Round-Robin

Shale

The Tomography Round-Robin data sets [B21] consist of two shale samples obtained from the North Sea (sample N1) and the Upper Barnett Formation in Texas (sample B1) [B20]. Shale is a challenging material because of its multiphase composition, small grain size, low but significant amount of porosity, as well as strong shape- and lattice-preferred orientation. The goals of this round-robin project were to (i) characterize microstructures and porosity on the micrometer scale, (ii) compare results measured at three synchrotron facilities, and (iii) identify optimal experimental conditions of high-resolution tomography (microCT) for fine-grained materials. microCT data of these shales were acquired under similar conditions at the Advanced Photon Source (APS) of Argonne National Laboratory, USA, at the Swiss Light Source (SLS) of the Paul Scherrer Institut, Switzerland and at the Advanced Light Source (ALS) of Lawrence Berkeley National Laboratory, USA with the goal to compare the data quality and determine phase proportions and microstructures differences from the same samples as measured at the three facilities. All instruments used a 10× objective lens with an effective pixel size of ~ 0.7 µm. The Round-Robin Data Sets consists of one measurement of sample N1 and one measurement of sample B1 taken at all three facilities for a total of 6 tomographic data sets.

To load the data sets and perform a basic reconstruction using tomoPy [B9] use the tomopy_rec.py python script.

Example:

tomopy recon --file-name /tomobank/tomo_00001.h5 --rotation-axis 1024

Tomo ID	Facility	Sample	Scan Name	Image	Axis
tomo_00001	APS	B1	hornby		1024
tomo_00002	APS	N1	blakely		1029
tomo_00003	SLS	B1	hornby		1011
tomo_00004	SLS	N1	blakely		1048
tomo_00005	ALS	B1	hornby
tomo_00006	ALS	N1	blakely

Sand

A second round-robin data set consisiting in a sand sample was acquire at the APS, ALS and NSLS-II.

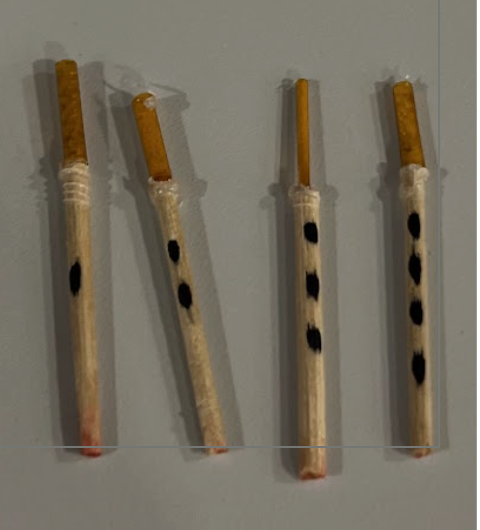

Sand samples 1-2-3-4 corresponding to tomo_00104, …, 00107.

APS data

Name	Value	Units

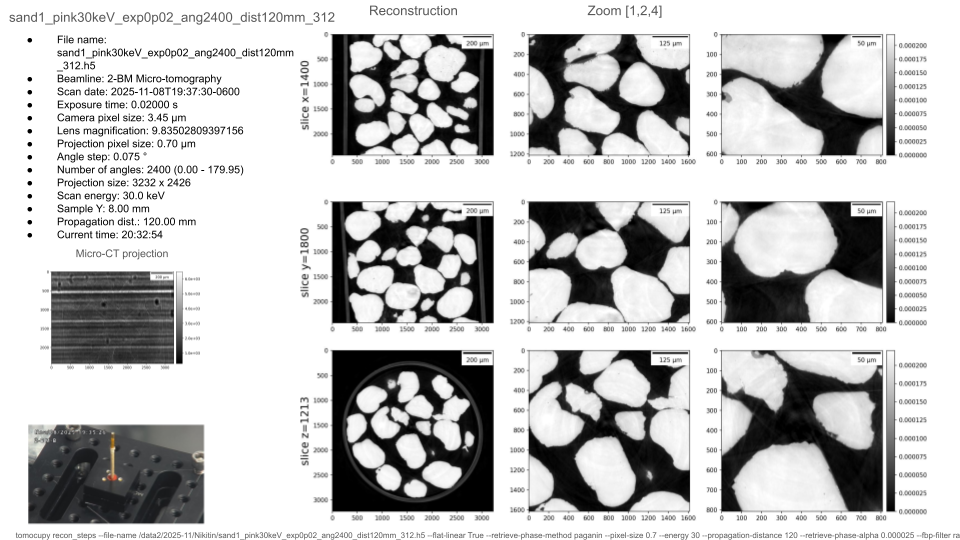

Tomo ID	tomo_00104
TomoLog
Instrument	APS beamline 2-BM
Sample Name	sand1_pink30keV_exp0p02_ang2400_dist120mm
Resolution	0.7016558051109314	µm
Acquire period	0.019528192	s
Energy	30.0 (pink)	keV
Sample to detector distance	120.0	mm

Name	Value	Units

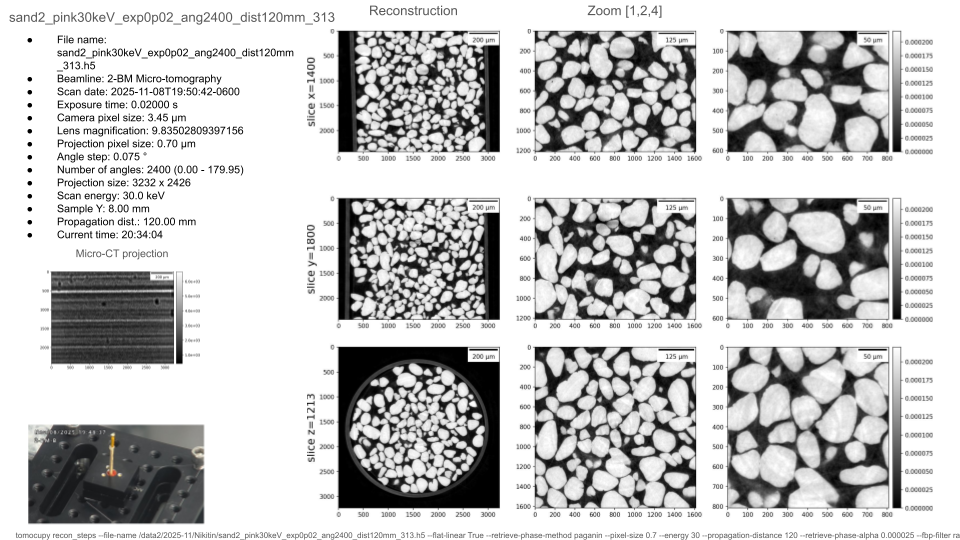

Tomo ID	tomo_00105
TomoLog
Instrument	APS beamline 2-BM
Sample Name	sand2_pink30keV_exp0p02_ang2400_dist120mm
Resolution	0.7016558051109314	µm
Acquire period	0.019528192	s
Energy	30.0 (pink)	keV
Sample to detector distance	120.0	mm

Name	Value	Units

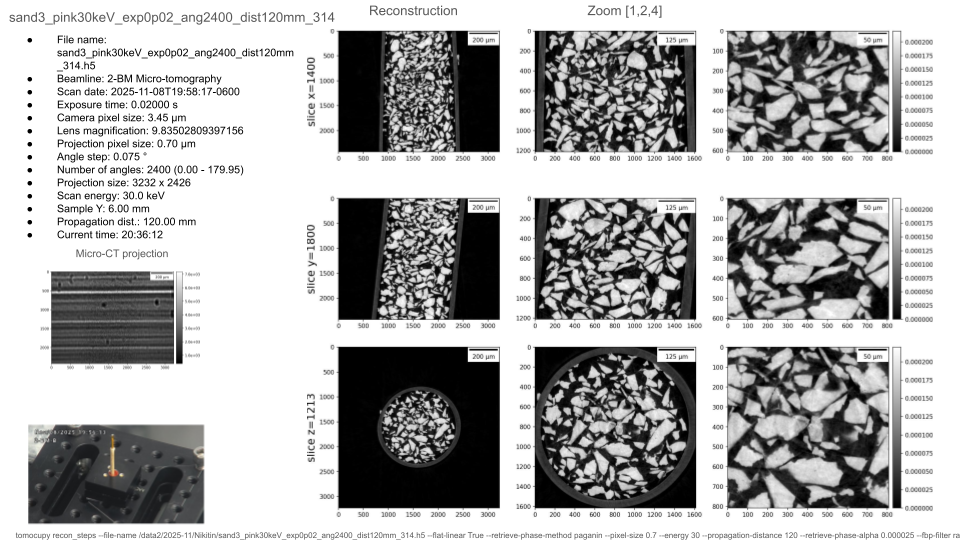

Tomo ID	tomo_00106
TomoLog
Instrument	APS beamline 2-BM
Sample Name	sand3_pink30keV_exp0p02_ang2400_dist120mm
Resolution	0.7016558051109314	µm
Acquire period	0.019528192	s
Energy	30.0 (pink)	keV
Sample to detector distance	120.0	mm

Name	Value	Units

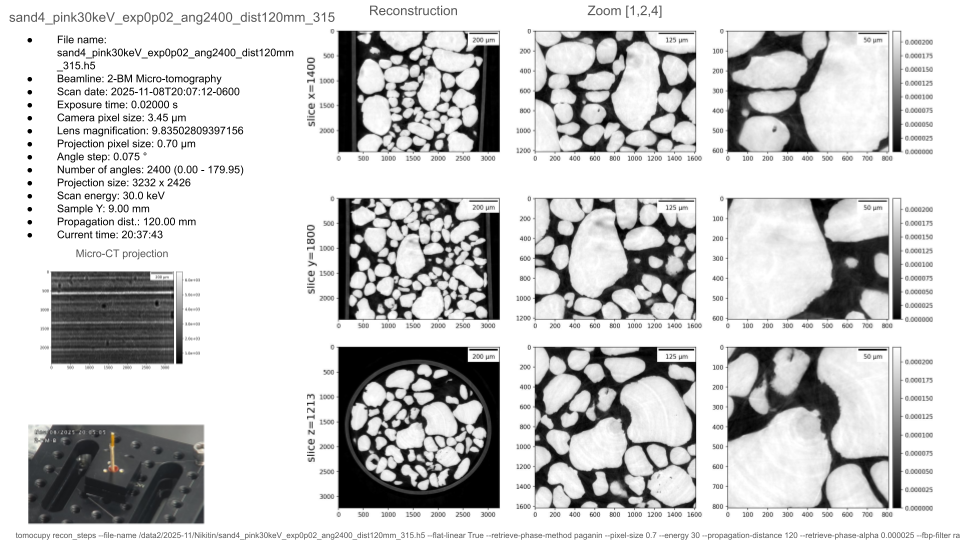

Tomo ID	tomo_00107
TomoLog
Instrument	APS beamline 2-BM
Sample Name	sand4_pink30keV_exp0p02_ang2400_dist120mm
Resolution	0.7016558051109314	µm
Acquire period	0.019528192	s
Energy	30.0 (pink)	keV
Sample to detector distance	120.0	mm

ALS data

to be completed
